Export in Desktop Viewers

Your application with the ActiveReports Viewer can contain any exports with any available dialogs. You can export your reports from ActiveReports Viewers to various formats, depending on the report type. This topic discusses all possible export options.

type=note
Note: As export options are customizable, the Export dialog may display a different list of export options.

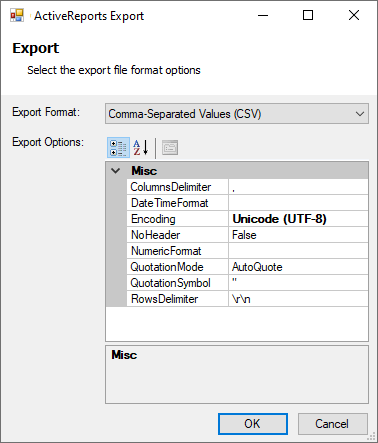

To export a report in the Viewer, go to File menu and select Export (Ctrl+E).

Below you can find full information on properties of each export format option.

Page/RDLX reports

For Page and RDLX reports, the following export formats are available.

Portable Document Format (PDF)
Microsoft Excel WorkSheet (XLS, XLSX)
Microsoft Excel WorkSheet - Data (CSV, XLSX)
Microsoft Word Document (DOC, DOCX)
Comma-separated values (CSV)
JavaScript Object Notation (JSON)
Text Print (TXT)
Image Format (BMP, GIF, JPEG, TIFF, PNG)
Hypertext Markup Language (HTML)
MIME Hypertext Markup Language (MHT)
Rich Text Format (RTF)
eXtensible Markup Language (XML)

For RDLX Dashboard reports, the following formats are available.

Comma-Separated Values (CSV)
JavaScript Object Notation (JSON)
Text Print (TXT)
Microsoft Excel WorkSheet - Data (CSV, XLSX)
eXtensible Markup Language (XML)

Portable Document Format (PDF)

Portable Document Format (PDF) is a format recommended for printing and for preserving formatting.

PDF is considered as the best format for printing and it also supports interactive features like Document Map, Bookmarks and Hyperlinks. However, in case you have any data hidden (like in a drill-down report) at the time of rendering, it does not show up in the output.

PDF Rendering Properties

Property	Description
Application	Set the value that appears for application in the Document Properties dialog of the PDF viewer application.
Author	Enter the name of the author to appear in the Document Properties dialog of the PDF viewer application.
CenterWindow	Set to True to position the document's window in the center of the screen.
DisplayMode	Specifies how the document is displayed when opened. FullScreen mode displays the document with no menu bar, window controls, or any other window visible.
DisplayTitle	Set to True to display text you enter in the Title property. When set to False it displays the name of the PDF file.
DocumentToAddAfterReport	Indicates the path of the PDF document to be inserted at the end of the rendering output.
DocumentToAddBeforeReport	Indicates the path of the PDF document to be inserted at the beginning of the rendering output.
DpiX	Set the horizontal resolution of the rendered PDF file.
DpiY	Set the vertical resolution of the rendered PDF file.
EmbedFonts	Select how the fonts used in the report should be embedded in the PDF document. Note: By default, all fonts get embedded in the exported PDF document.
Encrypt	Determines whether the document is encrypted or not. Note: If Encrypt is set to False, permissions and passwords have no effect.
EndPage	The last page of the report to render. The default value is the value for StartPage, that is, 0.
FallbackFonts	Gets or sets a comma-delimited string of font families to locate missing glyphs from the original font.
FitWindow	True to resize the document’s window to fit the size of the first displayed page. Default value: false.
HideMenubar	True to hide the viewer application’s menu bar when the document is active. Default value: false.
HideToolbar	True to hide the viewer application’s toolbars when the document is active. Default value: false.
HideWindowUI	True to hide user interface elements in the document’s window (such as scroll bars and navigation controls), leaving only the document’s contents displayed. Default value: false.
ImageInterpolation	Interpolation value of images. Allows to enable/disable image interpolation, when exporting the file to PDF.
Keywords	Keywords associated with the document.
NeverEmbedFonts	Gets or sets the semicolon-delimited string of the font families to be embedded in the PDF document.
OwnerPassword	The owner password that can be entered in the reader that permits full access to the document regardless of the specified user permissions.
PageHeight	The page height value, in inches, to set for the report. You must include an integer or decimal value followed by "in" (for example, 1in). This value overrides the report's original settings.
PageWidth	The page width value, in inches, to set for the report. You must include an integer or decimal value followed by "in" (for example, 1in). This value overrides the report's original settings.
Pagination	Gets or sets the value that indicates whether to use pagination in the exported PDF document.
Permissions	Specifies the user permissions for the document. Permissions can be combined using a comma between values.
PrintLayoutMode	Specifies layout mode to be used for PDF document.
PrintOnOpen	Gets or sets the value indicating whether the document should be printed after open.
PrintPresets	Gets or sets the PDF print preset dialog.
SizeToFit	Determines whether PDF pages are fit to the selected paper size or not.
StartPage	The first page of the report to render. A value of 0 indicates that all pages are rendered.
Subject	The subject of the document.
Title	The title of the document.
UserPassword	The user password that can be entered in the reader. If this value is left empty, the user will not be prompted for a password, however the user will be restricted by the specified permissions.
Version	Set the PDF version. The supported versions are: PDF-1.2
WatermarkAngle	Specify the degree of angle for the watermark text on the PDF document. Valid values range from 0 to 359, where 0 is horizontal, left to right.
WatermarkColor	Select a color for the watermark text on the PDF document. The default value for the watermark color is gray, but you can select any Web, System, or Custom color.
WatermarkFontName	Set the font to use for the watermark on the PDF document.
WatermarkFontSize	Set the font size to use for the watermark on the PDF document.
WatermarkFontStyle	Set the font style to use for the watermark on the PDF document.
WatermarkPrintOnly	Specify whether to print a report with a watermark on it. The default value is False.
WatermarkTitle	Enter text (i.e. CONFIDENTIAL) to use as the watermark on the PDF document.

Microsoft Excel WorkSheet (XLS, XLSX)

You can export excel files in two formats: Xls and Xlsx. XLSX is a format that opens in Microsoft Excel as a spreadsheet. This export does not render reports exactly as they appear in the Viewer due to inherent differences in the formats. The XLSX export filter has a number of useful properties that allow you to control your output.

Reports rendered in Excel support a number of interactive features like Bookmarks and Hyperlinks. However, in case you have any data hidden at the time of rendering (like in a drill-down report), it does not show up in the output. It is recommended that you expand all toggle items prior to rendering.

Excel Rendering Properties

Property	Description
Author	Gets or sets the name of the author of the document.
Categories	Sets the name of the categories that appears in the Categories field in the Properties of the exported Excel document.
FileFormat	Specifies the output format of the Excel document, i.e. Xls or Xlsx.
OpenXmlStandard	Specifies the level of Open XML document conformance on exporting in Xlsx file format. You can choose from the following values: * Strict: The default value. * Transitional: The Excel file generated by scheduled task execution using Strict (the default value of OpenXMLStandard) cannot be viewed on IOS devices.
PageSettings	Initializes Excel file print settings: PageOrientation and PaperSize.
Pagination	Forces pagination or galley report layout mode.
RightToLeft	Shows direction of sheets from right to left.
Security	Initializes the document security.
SheetMode	Indicates how to split the report pages into the excel sheets. You can choose from the following modes: * PagePerSheet: Each report page is exported to a separate excel sheet * SectionPerSheet: Each report section is exported to a separate excel sheet * SingleSheet: Entire report is exported to a single excel sheet
SheetName	Indicates the name of the sheet.
Title	Gets or sets the title of the document.
UseCompression	Indicates whether to use compression when exporting document to an Xlsx file.
UseDefaultPalette	Indicates whether to export the document with the default Excel palette.

Microsoft Excel WorkSheet - Data (CSV, XLSX)

You can export excel files in two formats, Xlsx and Csv.

Excel Data exports only data from Tablix, Table, and Matrix data regions, preserving the data region structure and ignoring layout-related features (page break, cumulative total, etc). Other controls and data regions of the original report are ignored at this export.

type=note
Note: If a report does not contain any data region (Table or Tablix), a Csv file is not generated.

For the Xlsx format, when a report has multiple data regions, each data region is exported to a separate excel sheet.

For the Csv format, a separate CSV file is created for each data region, available in the report.

Excel Data Rendering Properties

Property	Description
Csv	Csv related properties. See Csv Rendering Properties below.
FileFormat	Indicates whether to use Csv or OpenXml format for the output file.
Xlsx	OpenXml related properties. See Xlsx Rendering Properties below.

Csv Rendering Properties

Property	Description
ColumnsDelimiter	Sets or returns the text inserted between columns.
DateTimeFormat	Specifies the default format for date values.
Encoding	Specifies the encoding schema for output.
NoHeader	Specifies whether to omit the CSV Header.
NumericFormat	Specifies the default format for numeric values.
QuotationSymbol	Sets or returns the qualifier character to put around results.
RowsDelimiter	Sets or returns the text inserted between rows.

Xlsx Rendering Properties

Property	Description
AllowImages	Indicates whether to allow images or just plain data content.
Author	Gets or sets the name of the author of the document.
AutoRowsHeight	Indicates whether to export rows height or specify auto height.
Categories	Sets the name of the categories that appears in the Categories field in the Properties of the exported Excel document.
OpenXmlStandard	Specifies the level of Open XML document conformance on exporting in Xlsx file format. You can choose from the following values: * Strict: The default value. * Transitional: The Excel file generated by scheduled task execution using Strict (the default value of OpenXMLStandard) cannot be viewed on IOS devices.
RightToLeft	Shows direction of sheets from right to left.
Security	Sets the document encryption and security.
Title	Gets or sets the title of the document.
UseCompression	Indicates whether to use compression on exporting to an Xlsx file.

Microsoft Word Document (DOC, DOCX)

You can export Page reports and RDLX reports to Microsoft Office Open XML (OOXML) format (.Docx) or Word HTML format (.Doc) using the FileFormat property.

The Word HTML format (.Doc) provides greater layout accuracy for Page and RDLX Reports in Microsoft Word, while the OOXML format (.Docx) provides excellent editing experience for the exported reports.

type=note
Note: OOXML and Word HTML formats have a great difference: while Word HTML is almost WYSIWYG, OOXML allows editing and has a number of limitations. To learn about the limitations for both Word HTML and OOXML, see Word Export.

The OOXML format (.Docx) is recommended in the following scenarios:

Open exported reports in a wide range of applications: You can open and modify the exported Word document in any of the following applications.
- Microsoft Office 2013+
- Microsoft Office for Mac 2016+
- iWork and Pages for OS X (all supported versions)
- LibreOffice
- Google Quickoffice for Android
- Documents Free (Mobile Office Suite) by SavySoda for iOS
Customize reports after exporting: Positioning and arrangement of report elements in the exported document is implemented using the OOXML format (.Docx) which provides a natural document flow for editing the exported documents.
Use Word automation features: With support for automation features in the OOXML format (.Docx), tasks that previously required manual adjustments in the exported Word document are now handled automatically. Report elements such as page header and footer, expressions, heading levels, and table of contents are automatically transformed to the OOXML format (.Docx).
Set compatibility mode: You can render a report as a Word document that is compatible with Microsoft Word 2007, 2010, or 2013 using the DocumentCompatibleVersion property from the export settings.

Word Rendering Properties

Common properties

Property	Description
Author	Sets the name of the author that appears in the Author field of the Properties dialog in the rendered Word document.
Categories	Sets the name of the categories that appears in the Categories field in the Properties of the exported Word document.
FileFormat	Sets the output file format to HTML (.Doc) or Office Open XML (OOXML) (.Docx). By default the file format is set to HTML format.
Title	Sets the title for a document that appears in the Title field of properties dialog in the rendered Word document.

HTML format

Property	Description
BaseUrl	Sets the base URL for any relative hyperlinks that appear in the Hyperlink base field of the Properties dialog in the rendered Word document.
Generator	Sets the identity of the document generator in the rendered Word document.
PageHeight	Sets the height of the report pages in inches for the rendered Word document. The value in this property overrides the original settings in the report.
PageWidth	Sets the width of the report pages in inches for the rendered Word document. The value in this property overrides the original settings in the report.

OOXML format

Property	Description
CompanyName	Sets the name of the organization or company that appears in the Company field of Properties dialog in the rendered Word document.
DocumentCompatibilityVersion	Sets the compatibility mode of the document to previous versions (Microsoft Word 2007 - 2013) of Word. By default the compatibility version is set to Word2013.
DpiX	Sets the horizontal resolution of the images in the rendered Word document. By default DpiX is set to 96.
DpiY	Sets the vertical resolution of the images in the rendered Word document. By default DpiY is set to 96.
PageSettings	Initializes Word document print settings wrt. PageOrientation and PaperSize. * PageOrientation: sets a value that specifies whether the document pages should be printed in portrait or landscape in the rendered Word document. * PaperSize sets the paper size for the page.
SecuritySettings	Sets the document encryption and security. * Password: Sets a password that must be provided to open the rendered Word document. * ReadOnlyRecommended: Sets a value that indicates whether Microsoft Office Word displays a message whenever a user opens the document, suggesting that the document is read-only. * WritePassword: Sets the write password that is required for saving changes in the rendered Word document.
TOCAutoUpdate	Automatically updates the TableOfContents control while opening the Word document. By default TOCAutoUpdate is set to False.

Comma-separated values (CSV)

Comma-Separated Values (CSV) is a form of structured data in a plain text. The text in a CSV file is saved as series of values separated by comma.

CSV Rendering Properties

Property	Description
ColumnsDelimiter	Sets or returns the text inserted between columns.
DateTimeFormat	Specifies the default format for date values, for example, 'yyyy-MM-dd'.
Encoding	Specifies the encoding schema for output.
NoHeader	Specifies whether to omit the CSV Header.
NumericFormat	Specifies the format for numeric values, for example, '0.####'.
QuotationMode	Specifies whether to add double quotes to the exported data. * AutoQuote – Simple values are exported without quotes. The quotes are added only when the data contains column or row delimiters. This is the default export behavior. * AlwaysQuote – Exported values are always quoted.
QuotationSymbol	Sets or returns the qualifier character to put around results.
RowsDelimiter	Sets or returns the text inserted between rows.

JavaScript Object Notation (JSON)

JavaScript Object Notation (JSON) is a text-based data format in which the data is stored in the hierarchical form.

JSON Rendering Properties

Property	Description
Formatted	Specifies whether to format the file with tabs and spaces for readability.
QuotePropertyNames	Specifies whether to enclose property names in quotation marks.

Image Format (BMP, GIF, JPEG, TIFF, PNG)

Image Format option converts your report to an image file. Make sure that you select the ImageType property to any of the image formats available: BMP, GIF, JPEG, TIFF, and PNG.

By default, a separate file is created for each page in a report and an index to each corresponding file name is added (for example, image001.PNG, image002.PNG, etc).

Reports rendered as images do not support any of the interactive features of ActiveReports reports. Any data hidden at the time of export is hidden in the image.

type=note
Note: To render the entire report as a single image, set the Pagination property to False.

Image Rendering Properties

Property	Description
Compression	Sets or returns a value which specifies the compression to be used when exporting.
Dither	Specifies whether the TIFF image should be dithered when saving to a black and white output format, like CCITT3 or Rle. This property has no effect if the CompressionScheme property is set to Lzw or None(represents color output).
DpiX	Adjust the horizontal resolution of rendered images. The default value is 200.
DpiY	Adjust the vertical resolution of rendered images. The default value is 200.
ImageType	Select the type of image to which you want to render the report. Supported types are BMP, GIF, JPEG, TIFF, and PNG.
Pagination	By default, each page of a report is rendered as a separate image. Set this value to False to render the entire report as a single image.
Quality	Gets or sets the quality of the report to be rendered as a JPEG image.

Hypertext Markup Language (HTML)

HTML, or hypertext markup language, is a format that opens in a Web browser. You can export your reports to HTML format. It is a good format for delivering content because virtually all users have an HTML browser.

Reports rendered in HTML support a number of interactive features. Hyperlinks, Bookmarks and Drill through links can be rendered to HTML. However, Document Maps are not available in this format. For a drill down report, make sure that the data you want to display is expanded before rendering, otherwise it renders in the hidden state.

type=note
Note: HTML is not the best format for printing. Use the PDF rendering extension instead.

HTML Rendering Properties

Property	Description
EmbedImages	Set to true to embed image in the html file.
Fragment	Determine whether or not the full html text will be returned or just the contents contained inside the body tag will be returned. True indicates only the content inside the body tag will be return; otherwise false. The default is False.
OutputTOC	Indicates whether the report's existing TOC should be added in the output.
RenderingEngine	The RenderingEngine property is set to Mixed by default for improved quality output. The choices are Html or Mixed, where Mixed uses SVG to render charts.
StyleStream	Set the StyleStream to True to create an external .css file containing style information from your report controls' style properties. If you prefer to have style information embedded in the HTML file, set the StyleStream property to False.
LinkTarget	Specify a link target to control whether drill down reports and other links open in a new window or reuse the current window. By default, no value is set and links open in the same window. A value of _blank opens the link in a new window, or you can specify a window using window_name. By default this value is not set.
Mode	Galley mode renders the report in one HTML stream. Select Paginated mode to render each page as a section inside the HTML document.

MIME Hypertext Markup Language (MHT)

The MHT file extension refers to MIME HTML documents, a format for archiving web pages saved by web browsers, including Internet Explorer and Firefox. MHT files can contain resources like images, flash, java, audio, external links and html code. At that, MHT files contain all elements within a single file.

MHT Rendering Properties

Property	Description
Fragment	Set to True to return only the contents inside the body tags (to embed it within a Web page). Set to False to return the full HTML text.
Output TOC	Indicates whether to include a table of contents, if available, in the exported report.
Mode	Select Paginated to render each page as a section inside the HTML document, with page headers and footers. The Galley mode renders one long page with a single page header and footer.
Link Target	Enter a value of a target for hyperlinks contained inside a report. A value of _blank opens a new window; _self opens in the same window.

Rich Text Format (RTF)

type=note
Note: The RTF export, otherwise supported only in Section reports, is possible in Page/RDLX reports too since this export uses the section report document (RDF format) internally.

RTF or RichText format, opens in Microsoft Word, and is native to WordPad. This export does not render reports exactly as they appear in the Viewer due to inherent differences in the formats.

RTF Rendering Properties

Property	Description
EnableShapes	Indicates whether to export the Shapes and Lines to the RTF format if set to True. Microsoft Word is required to view it correctly.
Pagination	Indicates whether to use pagination for the output RTF document.

eXtensible Markup Language (XML)

XML is a useful format for delivering data to other applications as the resulting XML file opens in an internet browser.

XML format does not support interactive features except that when rendering a report to XML, complete drill-down data is shown regardless of whether the data is rendered in expanded state or not.

Xml Rendering Properties

Property	Description
Encoding	Select the encoding schema to use in the XML transformation.
XslStylesheet	Select the existing XSL Stylesheet file to use to transform the resulting XML file. Note: When using the XslStylesheet option, be sure to save the file in the correct file format, such as HTML.

Text Print (TXT)

Text Print is a format recommended for printing the reports with Table and Tablix data regions in the tabular format, preserving the grouping, layout, and formatting.

Xml Rendering Properties

Property	Description
CharHeight	Specifies the character height in points.
CharWidth	Specifies the character width in points.
FontFamily	Specifies the monospace font family. You can choose from Consolas, Courier New, and Lucida Console.
FontSize	Specifies the font height in points. Recommended values are: 11 for Consolas, 10 for Courier New, and 10 for Lucida Console.
HorizontalPaddings	Specifies the horizontal padding: * Keep: Retain the original padding * Adjust: Adjust the padding * Remove: Remove the padding
LineEnding	Specifies the end of a line.

Section Reports

For Section reports, you can use these export format options.

Portable Document Format (PDF)
Microsoft Excel Workbook (XLS, XLSX)
Hypertext Markup Language (HTML)
MIME Hypertext Markup Language (MHT)
Rich Text Format (RTF)
Tagged Image Format (TIFF)
Plain Text (TXT)

PDF Document Format (PDF) (Section report)
