Load and View PDF Files in Vue

This tutorial shows how to integrate the Document Solutions for PDF Viewer (DsPdfViewer) into a Vue 3 application. The DsPdfViewer lets users view and edit PDF files directly in the browser, including interactive PDF forms, and save modified documents on the client side. It supports all modern browsers and provides an efficient way to load and display PDF files in web applications.

If you want to follow along, feel free to download the completed Vue 3 PDF Viewer sample project to explore the implementation, or watch the video tutorial below:

Prerequisites

Before you begin, make sure the following tools are installed:

  • Node.js (download the latest version from the official Node.js site)

  • NPM (included with Node.js)

  • Vue CLI (create new projects using the built-in Vue scaffolding tool)

Once these are installed, you can begin creating your Vue project.

Create a Vue 3 Project

Use the following command to create a new Vue application:

npm create vue@latest

During setup, you’ll be prompted to choose optional features such as TypeScript or testing support.

After the project is created, navigate to the folder and install the Document Solutions PDF Viewer package. You can also install Bootstrap for optional styling:

cd pdf-viewer-app
npm install @mescius/dspdfviewer
npm install bootstrap

When installation is complete, the required files will be available in: node_modules/@mescius/dspdfviewer/

Add the PDF Viewer Component to the Vue Application

Open the App.vue file and replace the default template with a single host element for the viewer:

<template>
  <div id="viewer"></div>
</template>

Initialize the PDF Viewer inside the onMounted lifecycle hook.

Create a new instance of DsPdfViewer, set the worker source path, and call addDefaultPanels() to display the toolbar and navigation panels.

<script setup>
import { onMounted } from 'vue'
import { DsPdfViewer } from '@mescius/dspdfviewer'
import 'bootstrap/dist/css/bootstrap.css'

onMounted(() => {
  const viewer = new DsPdfViewer(document.getElementById('viewer'), {
    workerSrc: "./node_modules/@mescius/dspdfviewer/dspdfviewer.worker.js"
  })
  viewer.addDefaultPanels()
})
</script>

Add CSS styles to ensure the viewer fills the page.

Edit main.css with the following rules:

html, body, #app {
  height: 100%;
  margin: 0;
  padding: 0;
}
#viewer {
  height: 100%;
  width: 100%;
}

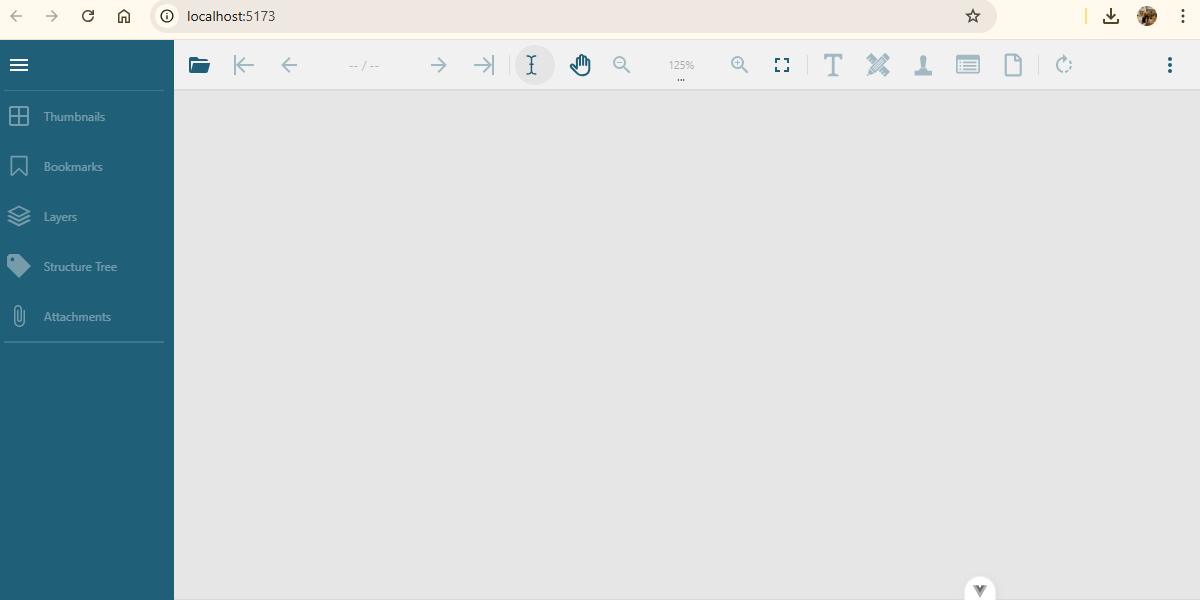

Run the Vue 3 project, and you’ll see the PDF Viewer display in the browser window with its default interface panels.


Load a Local PDF File in a Vue Application

With the viewer running, you can now load a PDF stored locally in your project.

For this example, place a file named social_media_schedule.pdf in public/pdfs/.

To display the file, use the open() method of the viewer:

viewer.open("./public/pdfs/social_media_schedule.pdf");

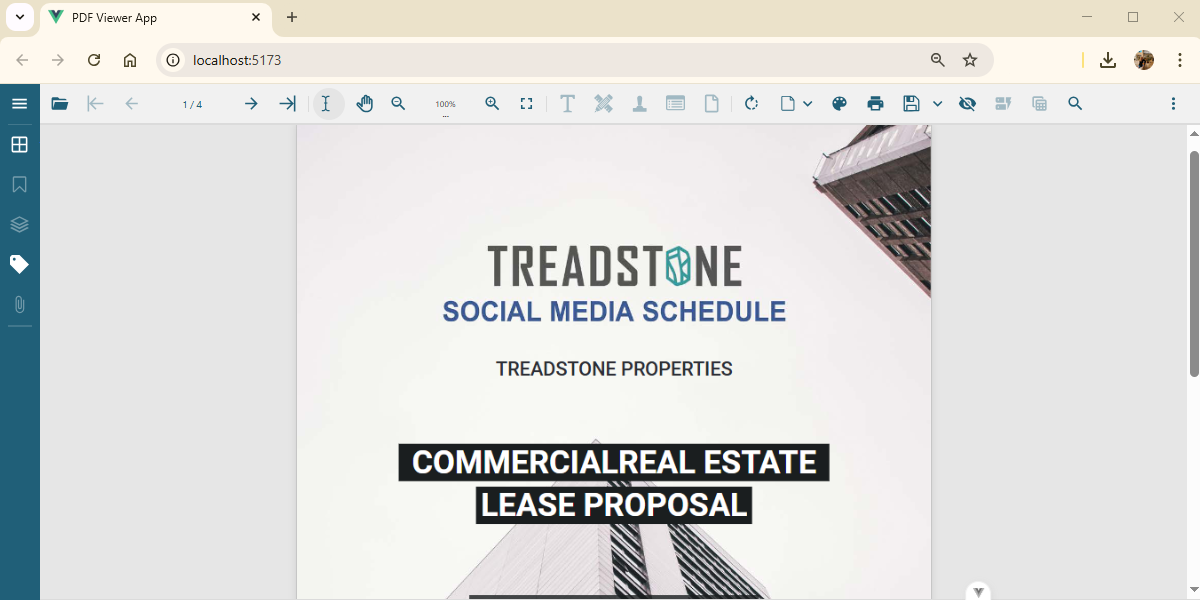

When you run the app, the specified PDF file will load automatically in the DsPdfViewer.


You can also use the openLocalFile() method to let users select a file through a native open-file dialog.

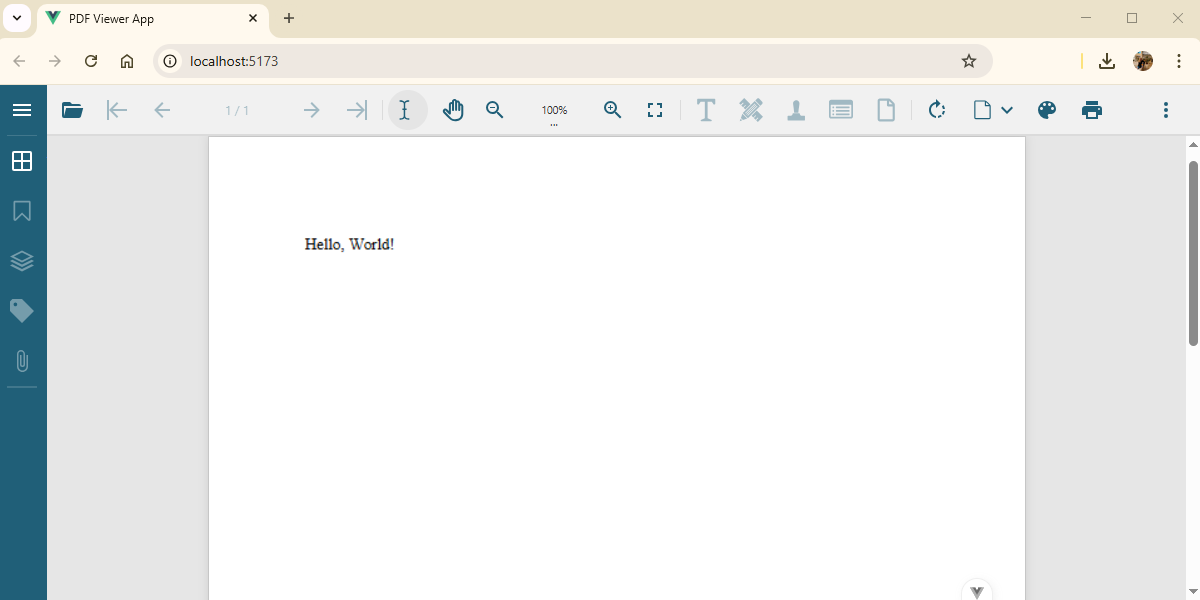

Load a PDF from a URL in a Vue Application

You can also open PDFs hosted on the same domain as your Vue app.

Use the same open() method and provide the relative URL to the PDF:

viewer.open("/document-solutions/javascript-pdf-viewer/demos/product-bundles/assets/pdf/helloworld.pdf");

The viewer will download and render the file directly in the browser.


This method works for any PDF that resides within your web application’s domain.

Load a PDF from Another Domain (Using a CORS Proxy) in a Vue Application

When loading a PDF from a different domain, browsers may block the request due to CORS (Cross-Origin Resource Sharing) restrictions.

To handle this, DsPdfViewer supports a SupportApi configuration, which uses an ASP.NET Core service as a proxy for loading and streaming remote PDF files.

Create a CORS Proxy Endpoint

In your ASP.NET Core project, add a controller named CorsProxyController:

[ApiController]
[Route("[controller]")]
public class CorsProxyController : ControllerBase
{
    private readonly IHttpClientFactory _httpClientFactory;
    public CorsProxyController(IHttpClientFactory httpClientFactory) => _httpClientFactory = httpClientFactory;

    [HttpGet]
    public async Task<IActionResult> Get(string url)
    {
        if (string.IsNullOrEmpty(url)) return BadRequest("Missing 'url' query parameter.");
        var client = _httpClientFactory.CreateClient();
        var response = await client.GetAsync(url);
        if (!response.IsSuccessStatusCode) return StatusCode((int)response.StatusCode);
        var stream = await response.Content.ReadAsStreamAsync();
        var contentType = response.Content.Headers.ContentType?.ToString() ?? "application/pdf";
        return File(stream, contentType);
    }
}

Register the HTTP client in Program.cs:

builder.Services.AddHttpClient();

Update the Vue Component to Use the Proxy

Once the proxy service is running, configure the supportApi object in your Vue viewer setup:

onMounted(() => {
  const viewer = new DsPdfViewer("#viewer", {
    workerSrc: "https://cdn.mescius.com/ds-pdfviewer/latest/dspdfviewer.worker.js",
    restoreViewStateOnLoad: false,
    supportApi: {
      apiUrl: "https://localhost:7296",
      token: "support-api-demo-net-core-token-2021",
      webSocketUrl: false
    }
  });

  viewer.addDefaultPanels();
  viewer.open("https://localhost:7296/CorsProxy?url=https://www.africau.edu/images/default/sample.pdf");
});

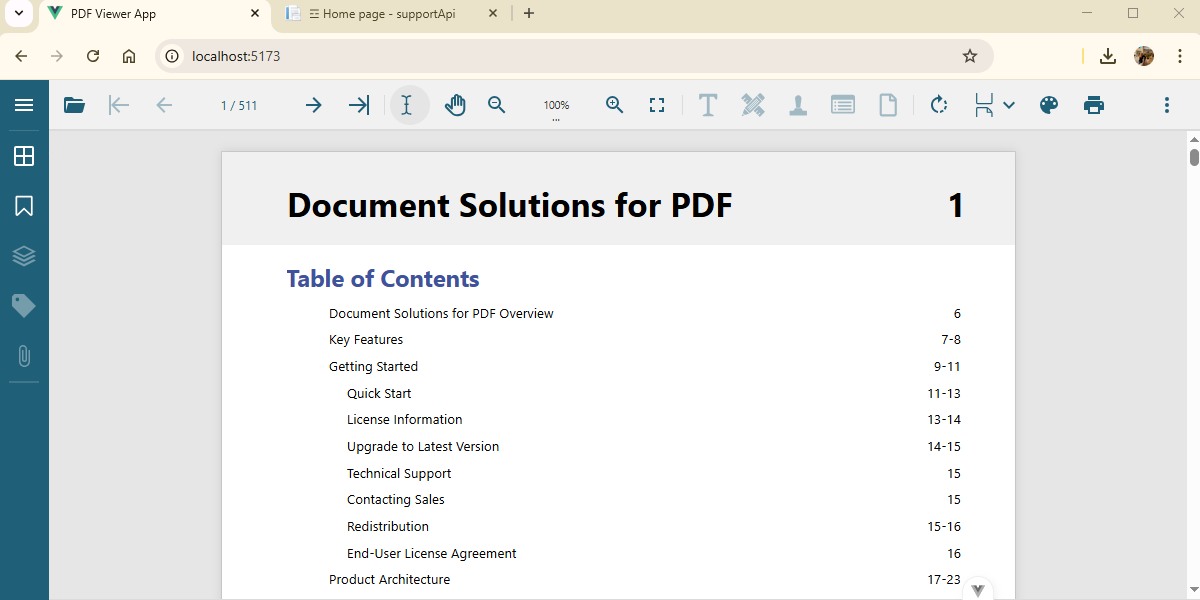

After these steps, your Vue app can securely open and render PDFs from external domains without encountering CORS errors.


FAQ

Why doesn’t my PDF load when using a URL from another domain?

This is typically caused by browser CORS restrictions. To fix this, configure the supportApi option in DsPdfViewer to proxy remote file requests through your own server (for example, using an ASP.NET Core endpoint). This ensures cross-domain PDFs load securely without browser blocking.

Can DsPdfViewer be used directly in a Vue 3 application without a backend?

Yes. For local files or same-domain assets, no backend is required. You can use viewer.open() to load project PDFs or viewer.openLocalFile() to allow user-selected files. A backend is only needed when loading files from external URLs that lack CORS headers.

Does DsPdfViewer support editing or only viewing PDFs in Vue?

DsPdfViewer supports both viewing and editing features. Users can fill out interactive forms, modify annotations, add comments, and save updated PDFs all directly in the browser without requiring server round-trips. Editing features require a Professional DsPdfViewer license and is not included in the standard DsPdfViewer license provided with every DsPdf license.

How can I customize the appearance of the PDF Viewer in Vue?

You can use the built-in API methods like addDefaultPanels() or updatePanel() to customize toolbars and navigation areas. Additionally, apply CSS styles or Bootstrap classes to adjust layout, colors, and overall viewer appearance.

Can DsPdfViewer for Vue work with other frameworks or standalone HTML pages?

Absolutely. DsPdfViewer is framework-agnostic, meaning it works seamlessly in Vue, React, Angular, or plain JavaScript/HTML environments. The API usage and configuration remain consistent across frameworks.
