FlexViewer provides you the flexibility to rotate the view of reports to different angles according to your requirements. To rotate the view of a report, set the RotateView property of FlexViewer class. The RotateView property accepts the following values from the FlexViewerRotateView enumeration which describes the rotation angle of the view:

• NoRotation: Rotation is not applied to the view
• Rotation180: Rotates the view 180 degrees
• Rotation90Clockwise: Rotates the view 90 degrees clockwise
• Rotation90CounterClockwise: Rotates the view by 90 degrees counter-clockwise

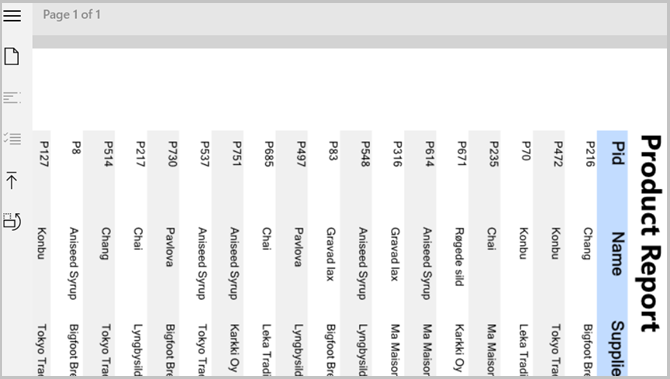

Rotate View of Report at Runtime

At runtime, you can rotate the view of a report in clockwise or anti-clockwise direction from the View dropdown list on the top right corner of the FlexViewer control.

Rotate View of Report Programmatically

To rotate view of a report, use the RotateView property as shown in the following code:

<c1:FlexViewer Name="fv" RotateView="Rotation90Clockwise" Height="600" Width="900" VerticalAlignment="Top"></c1:FlexViewer>

fv.RotateView = FlexViewerRotateView.Rotation90Clockwise

Usability and Navigation

FlexViewer enhances usability through smooth navigation, flexible zooming, and keyboard shortcuts.

Keyboard Shortcuts Table
