  I am trying to create a drawing in a sub report, for that I need to draw lines dynamically while generating the report, I am trying to use Line control for that But I am not able to view the line in the report., Below is the code snippet I am using

  private void DiagramSectionReport_ReportStart(object sender, EventArgs e)
          {
              var line = new Line
              {

                  X1 = 10,
                  Y1 = 100,
                  X2 = 200,
                  Y2 = 100,
                  LineColor = Color.Red,
                  LineWeight = 3
              };
              this.Sections[1].Controls.Add(line);
              this.detail.Controls.Add(line);



              GrapeCity.ActiveReports.SectionReportModel.Label lblCategoryID = new GrapeCity.ActiveReports.SectionReportModel.Label();
              lblCategoryID.Location = new PointF(0, 0.05F);
              lblCategoryID.Text = "Category ID";
              lblCategoryID.Alignment = TextAlignment.Center;
              lblCategoryID.Font = new System.Drawing.Font("Arial", 10, FontStyle.Bold);
              this.Sections[0].Controls.Add(lblCategoryID);
              this.Sections[1].Controls.Add(lblCategoryID);
          }


  I am able to view the Label but not able to view the line, Am I doing something wrong here?

  I have attached 2 images below to

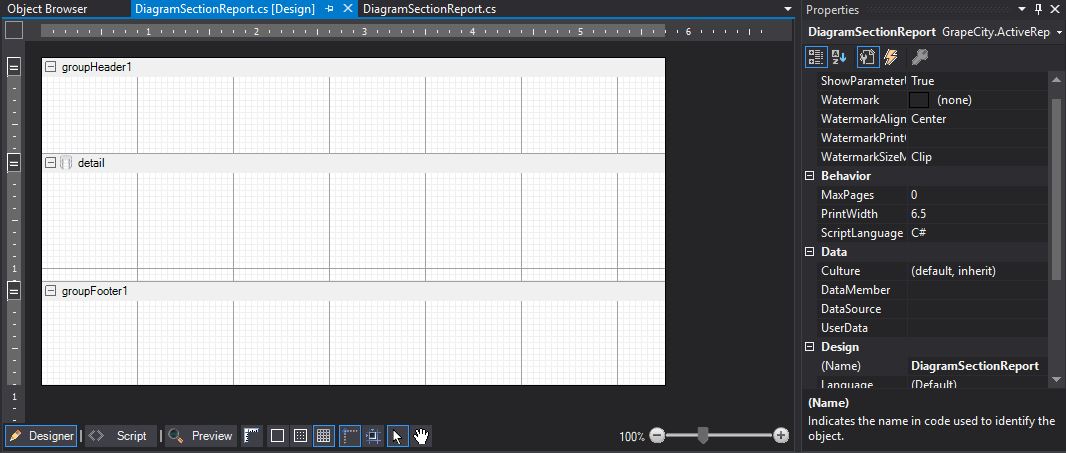

  1 . Design of sub reports showing 3 sections

  2. My reports(pdf’s) section showing the output of my sub report.





  1114×150 3.5 KB



  1066×453 75.9 KB

•

  esha.dhir



  • Post Options:
  • Link
    Copy

  Posted 2 September 2019, 7:42 am EST

  Hello,

  The line might be rendered in your report, but to view it in your section, you may want to decrease the coordinate values and use certain other properties as follows:

  var line = new Line
             {
                 Name="line1",
                 X1 = 3.34,
                 Y1 = 0.062,
                 X2 = 4.34,
                 Y2 = 0.062,
     	Height=0,
     	Top=0.104,
     	Left=3.968,
                 LineColor = Color.Red,
                 LineWeight = 3,
     	LineStyle=LineStyle.Solid
             };
             this.Sections[1].Controls.Add(line);
             this.detail.Controls.Add(line);


  Regards,

  Esha

•

  swapnil.kumbhar

  • Post Options:
  • Link
    Copy

  Posted 2 September 2019, 9:38 am EST

  Thank you very much Esha, If you can can provide a link to the documentation of Line that will be a great help

•

  mohitg



  • Post Options:
  • Link
    Copy

  Posted 2 September 2019, 10:09 am EST

  Hello,

  Please refer to the following documentation link of Line control:

  https://help.grapecity.com/activereports/webhelp/AR13/webframe.html#LineSectionReport.html

  Thanks,

  Mohit
