Margins Tab

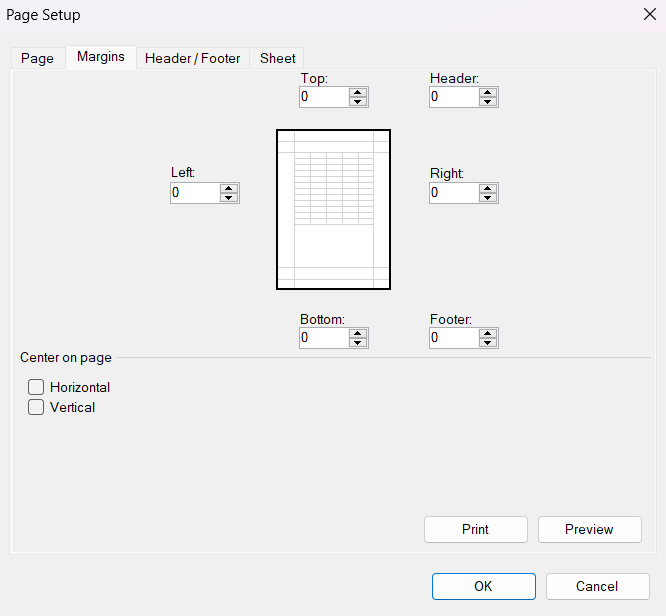

The Margins tab of the Page Setup dialog provides the following items:
This tab provides the following items:
Item | Description |
|---|---|
Top | Set the top margin (between the top of the page and the top of the header) for the printed page. |
Left | Set the left margin for the printed page. |
Right | Set the right margin for the printed page. |
Bottom | Set the bottom margin (between the bottom of the page and the bottom of the footer) for the printed page. |
Header | Set the header margin (between the bottom of the header and the top of the contents) for the printed page. |
Footer | Set the footer margin (between the top of the footer and the bottom of the contents) for the printed page. |
Center on page | Set the data to be centered on the page within the margins by selecting the Vertically check box, the Horizontally check box, or both. |
The units of measure are inches, so 3/4 of an inch would be 0.75. For a 1-inch margin, type in 1 or 1.0.
For more information on these settings, refer to the members of the PrintMargin class; the Spread Designer divides the inputted value by 100 in order to use the PrintMargin object which uses units of 100-ths of an inch.
For more information on print margins, refer to Customizing the Printed Page Layout of the Developer’s Guide.
