Auto Updating Filters in Table

Spread allows the table's filter feature to be updated automatically when a user edits a cell in the table or the datasource bound to the table is changed. To do this, you can use the AutoUpdate property of the IAutoFilter interface. By default, this property is set to false.

The AutoUpdate property takes its value from the AutoUpdateFilter property of the IWorksheet interface in the beginning when a new auto filter is created.

!type=note
Note:
If IWorkSheet.AutoUpdateFilter property is set to true, after the auto filter is created, it will be updated automatically when the table values change.
If IWorksheet.AutoUpdateFilter property is set to false, after the auto filter is created, it will not be updated automatically when the table values change.

Afterwards, the automatic updating of the AutoFilter is completely dependent upon the AutoUpdate property of the IAutoFilter interface without relying on AutoUpdateFilter.

!type=info
Tip:
If the value in the table is changed through code, then the user must invoke IAutoFilter.ApplyFilter method.

Let's consider an example to understand the behavior of the AutoUpdate property at runtime.

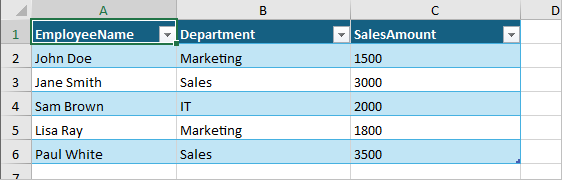

Create a table and bind it with a data source.
Click the Filter button on column A.

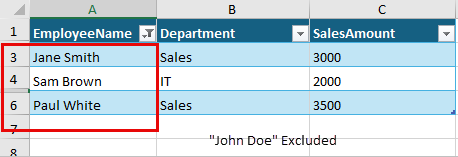

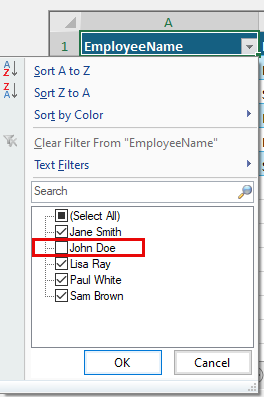

Exclude ‘John Doe’ from the list and click OK.
Input “John Doe” in any of the cell in column A at runtime.

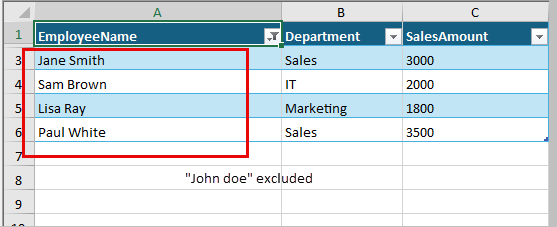

Observe: After you stop editing, the row will be filtered out.

!type=note
Note:
You can edit the cell value manually or by pressing F1 to update the bound table with some new data.

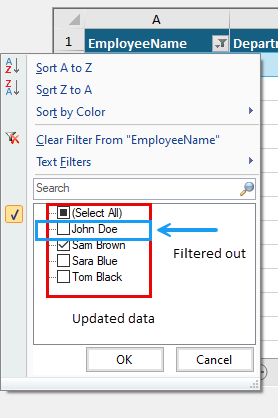

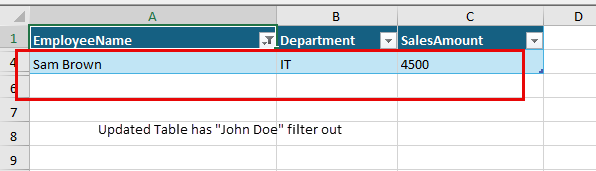

Observe: The updated table will filter out the previously excluded value.

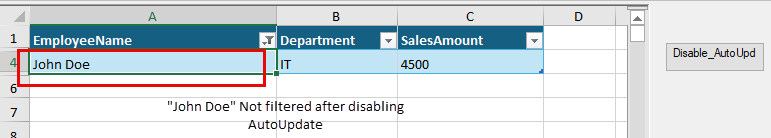

Click on ‘Disable_AutoUpd’ button to set AutoFilter.AutoUpdate to false.
Edit any value in visible row with the excluded value ‘John Doe’.

The following code shows how AutoUpdate is controlled by the AutoUpdateFilter property initially and then how it works independently afterwards.

private ITable table;
private Button btn_disable_Autoupdate;
IWorksheet sheet;
 fpSpread1.LegacyBehaviors = FarPoint.Win.Spread.LegacyBehaviors.None;
 sheet = fpSpread1.AsWorkbook().ActiveSheet;
 // Create a DataTable
 DataTable dt = new DataTable();
 dt.Columns.AddRange(new[]
    {
        new DataColumn("EmployeeName"),
        new DataColumn("Department"),
        new DataColumn("SalesAmount")
    });
 dt.Rows.Add("John Doe", "Marketing", 1500);
 dt.Rows.Add("Jane Smith", "Sales", 3000);
 dt.Rows.Add("Sam Brown", "IT", 2000);
 dt.Rows.Add("Lisa Ray", "Marketing", 1800);
 dt.Rows.Add("Paul White", "Sales", 3500);
 dt.AcceptChanges();
 // Enable the AutoUpdateFilter option
 sheet.AutoUpdateFilter = true;
 // Create a table and bound with DataTable
 table = sheet.Range($"A1:C{dt.Rows.Count}").CreateTable(true);
 table.AutoGenerateColumns = true; // Set AutoGenerateColumns property to true
 table.DataSource = dt;

 this.KeyPreview = true;
 this.KeyDown += (s, ea) =>
   {
        if (ea.KeyCode == Keys.F1)
        {
            // Modify the DataTable
            dt.Clear();
            dt.Rows.Add("John Doe", "Marketing", 4000);
            dt.Rows.Add("Sara Blue", "IT", 2200);
            dt.Rows.Add("Sam Brown", "IT", 4500);
            dt.Rows.Add("Tom Black", "Sales", 3200);
        }
    };
}
private void Btn_disable_Autoupdate_Click(object sender, EventArgs e)
{
    // Disable the AutoUpdate Option
    table.AutoFilter.AutoUpdate = false;
}

Private table As ITable
Private btn_disable_Autoupdate As Button
Private sheet As IWorksheet
 FpSpread1.LegacyBehaviors = FarPoint.Win.Spread.LegacyBehaviors.None
 sheet = FpSpread1.AsWorkbook().ActiveSheet
 ' Create a DataTable
 Dim dt As DataTable = New DataTable()
 dt.Columns.AddRange({New DataColumn("EmployeeName"), New DataColumn("Department"), New DataColumn("SalesAmount")})
 dt.Rows.Add("John Doe", "Marketing", 1500)
 dt.Rows.Add("Jane Smith", "Sales", 3000)
 dt.Rows.Add("Sam Brown", "IT", 2000)
 dt.Rows.Add("Lisa Ray", "Marketing", 1800)
 dt.Rows.Add("Paul White", "Sales", 3500)
 dt.AcceptChanges()
 ' Enable the AutoUpdateFilter option
 sheet.AutoUpdateFilter = True
 ' Create a table and bound with DataTable
 table = sheet.Range($"A1:C{dt.Rows.Count}").CreateTable(True)
 table.AutoGenerateColumns = True ' Set AutoGenerateColumns property to True
 table.DataSource = dt
 Me.KeyPreview = True
 AddHandler Me.KeyDown, Sub(s, ea)
                               If ea.KeyCode = Keys.F1 Then
                                   ' Modify the DataTable
                                   dt.Clear()
                                   dt.Rows.Add("John Doe", "Marketing", 4000)
                                   dt.Rows.Add("Sara Blue", "IT", 2200)
                                   dt.Rows.Add("Sam Brown", "IT", 4500)
                                   dt.Rows.Add("Tom Black", "Sales", 3200)
                               End If
  End Sub
End Sub
Private Sub Btn_disable_Autoupdate_Click(ByVal sender As Object, ByVal e As EventArgs)
   ' Disable the AutoUpdate option
   table.AutoFilter.AutoUpdate = False
End Sub

Limitation

This feature only works when LegacyBehaviors.Style is excluded from LegacyBehaviors enum.
