WebDesigner Custom

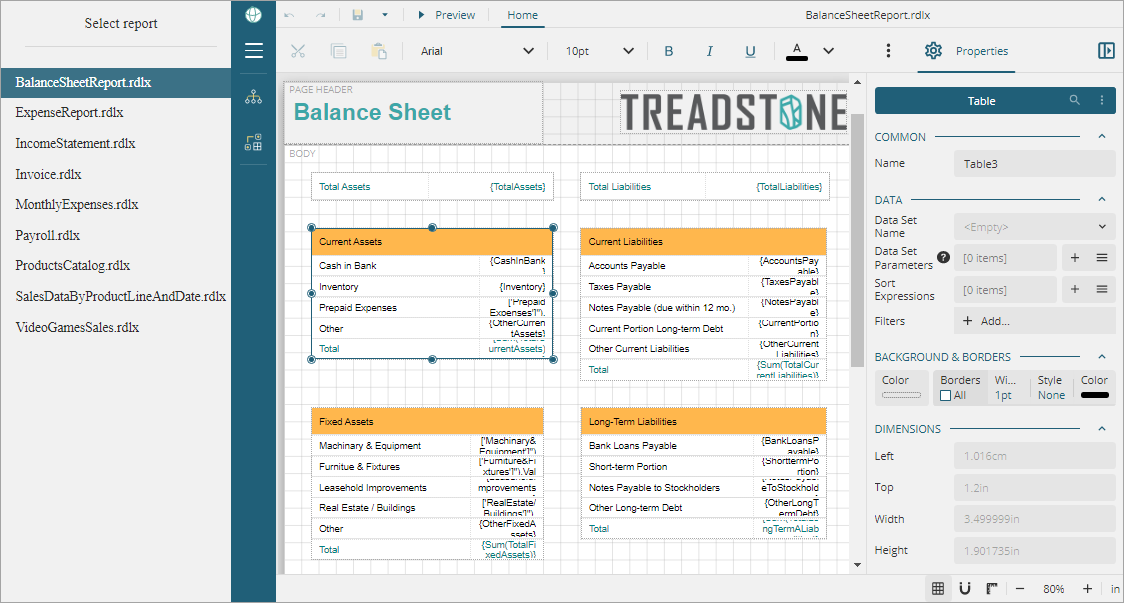

This sample shows how to use the WebDesigner API to create a customized UI for ActiveReports WebDesigner with an ASP.NET Core back end.

type=note

Note: To run this sample, you must have

• Visual Studio 2022 (version 17.0 or later)
• .NET 6.0 SDK
• .NET Core Hosting Bundle (for deployment to IIS)

Sample Location

C#

https://github.com/activereports/WebSamples19/tree/main/WebDesigner_Custom

Details

Some of the customizations demonstrated in the sample are shown below. You can check the Index.cshtml page of the sample for complete implementation.

• Use a custom logo (white labeling)

  menu: { logo: { custom: { type: 'css', class: 'example-icon' } }


• Hide About button

  appBar: { aboutButton: { visible: false } }


• Hide File menu

  documents: { fileView: { visible: false }


• Lock the report layout, that is, disable the operations that modify the report layout structure

  lockLayout: true


• Hide ToolBox

  menu: { toolBox: { visible: false }}


• Hide Parameters tab, the design area for designing a custom parameter pane

  appBar: { parametersTab : { visible: false }}






• Hide Data tab

  data: { dataTab: { visible: false }}



  Hiding Data tab hides the options such as data sources, data sets, parameters, and common values.


• Hide Properties Mode button that helps switch between the Advanced and Basic properties of the report elements

  statusBar: { propertiesModeButton: { visible: false }}


• Limit font list to limited font families

  fonts : [
                          { header: 'Questionable Choice' },
                          { label: 'Pretty Font', value: 'Comic Sans MS' },
                          { header: '' },
                           'Arial',
                           'Courier New',
                           'Times New Roman'
           ]


• Property grid uses the Basic mode to show the properties of report elements

  propertyGrid: { mode:'Basic'}
