Constructing and Using DocumentServices

The DocumentServices class in js-collaboration-ot is the core component of server-side OT (Operational Transformation) functionality, used to manage document snapshots and operations, including storage, submission, and retrieval. This document explains how to construct and use DocumentServices, including:

• Store and read document snapshots and operations

• Handle operation submission and snapshot updates

• Add middleware and hook extensions

Use Cases

• Customize OT behavior

• Optimize performance

• Implement specific persistence solutions

Initialization

Initalizing DocumentServices

Construction

DocumentServices accepts a configuration object (IDocConfig) through its constructor, allowing developers to customize the database and behavior parameters.

Configuration Parameters

type=note

Note on submitSnapshotBatchSize:

This parameter defines the frequency of snapshot updates. When the number of accumulated operations on the server reaches this value, these operations are applied to the current snapshot, generating and submitting an updated snapshot to the database which will overwrite the old snapshot.

Operations themselves are stored independently, while the snapshot always maintains the latest version. This mechanism balances the frequency of snapshot updates with database write overhead.

Example: Basic Configuration

import { DocumentServices, MemoryDb } from '@mescius/js-collaboration-ot';

// Configure DocumentServices
const docService = new DocumentServices({
    db: new MemoryDb(), // Use in-memory database
    maxSubmitRetries: 3, // Maximum 3 retries
    submitSnapshotBatchSize: 50 // Update snapshot after accumulating 50 operations
});

type=note

The default is to use MemoryDb, suitable for development and testing. For production environments, it is recommended to use a persistent adapter (e.g., Postgres Adapter)

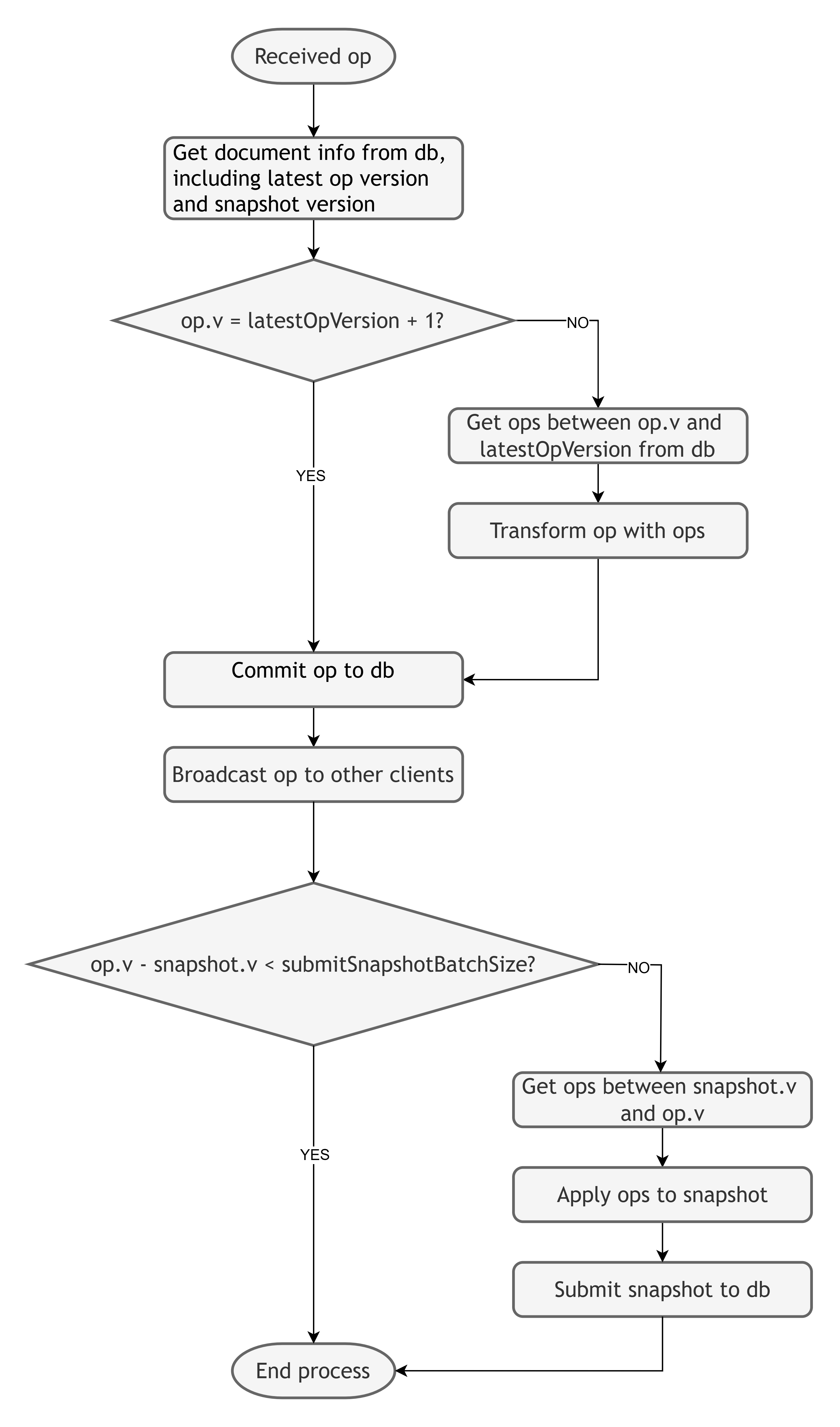

Server Operation (Op) Processing Flow

Methods

use

Register middleware to add custom logic to the operation process.

use<K extends keyof IDocMiddlewareContext<S, T>>(action: K, middleware: IMiddleware<IDocMiddlewareContext<S, T>[K]>)

Parameters

• action: Middleware action name (e.g., "submit", "receive")

• middleware: Middleware function. Its type is IMiddleware. It receives the context and controls the process.

Example

docService.use('submit', async (context, next) => {
    console.log('submit op', context.request.op);
});

on

Register a hook to listen for operation events.

on<K extends keyof IDocHookContext>(hookName: K, hook: IHook<IDocHookContext[K]>)

Parameters

• hookName: Hook name (e.g., "submitRequestEnd")

• hook: Hook function, type IHook, which receives the context

Example

docService.on('submitRequestEnd', (context) => {
    console.log('Submission completed:', context);
});

fetch

Retrieve the latest snapshot of a specified document.

fetch(id: string, context?: IContext): Promise<ISnapshot<S>>

Parameters

• id: Document ID (string)

• context (optional): Operation context

Return:

Promise<ISnapshot<S>> - A Promise containing the latest snapshot.

Example

const snapshot = await docService.fetch('doc1');
console.log('Latest snapshot:', snapshot.data);

getOps

Retrieve operations within a version range for a specified document (including from, excluding to).

getOps(id: string, from: number, to?: number, context?: IContext): Promise<IOp<T>[]>

Parameters

• id: Document ID (string)

• from: Starting version number (inclusive)

• to (optional): Ending version number (exclusive)

• context (optional): Operation context

Return

Promise<IOp<T>[]> - A Promise containing an array of operations.

Example

const ops = await docService.getOps('doc1', 0, 5);
console.log(ops);

submit

Submit an operation to a specified document.

submit(id: string, op: IOp<T>, context?: IContext): Promise<IOp<T>[]>

Parameters

• id: Document ID (string)

• op: Operation, type IOp<T>

• context (optional): Operation context

Return

Promise<IOp<T>[]> - A promise resolving to the resulting operations.

Example

docService.submit('doc1', op);

fetchHistorySnapshot

Retrieve a historical snapshot of a specified document.

fetchHistorySnapshot(id: string, version?: number, context?: IContext): Promise<ISnapshot<S>>

Parameters

• id: Document ID (string)

• version (optional): Target version number; if omitted, returns the latest snapshot

• context (optional): Operation context

Return

Promise<ISnapshot<S>> - A Promise containing the historical snapshot.

Example

const snapshot = await docService.fetchHistorySnapshot('doc1', 2);
console.log('Historical snapshot:', snapshot.data);
